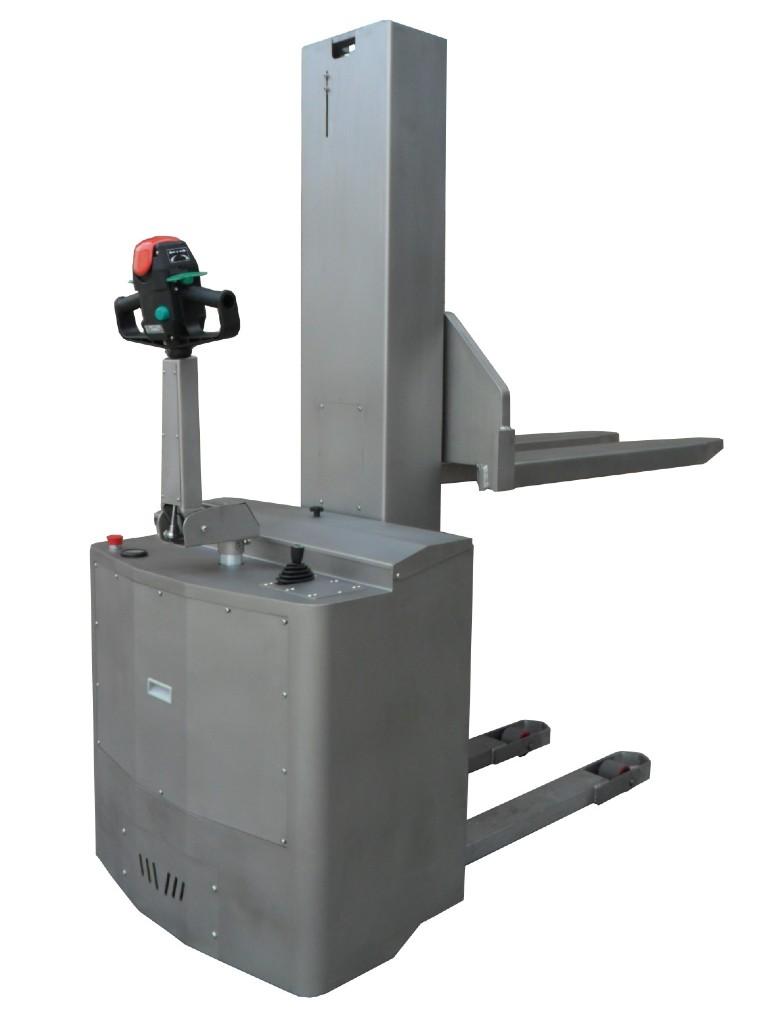

Electric pedestrian INOX Stacker with standard forks
Self propelled Stacker made in stainless steel Aisi 304. Mono mast with forks. Capacity 1000kg and 1500kg. Available on demand with customized dimensions and different equipment.
→
| Data Sheet | CMX 10 | CMX 15 | |
| Capacity | kg | 1000 | 1500 |
| Load centre | mm | 600 | 600 |
| Weight | kg | ------ | ------ |
| Wheels | PU/PU | PU/PU | |
| Traction motor | kW | PM 0,7 | ES 1,7 |
| Lifting motor | kW | DC 2,0 | DC 2,0 |
| Battery | V/Ah | 24/140 | 24/210 |
| Battery weight | kg | 145 | 185 |
| Charger | V/A | HF 16A | HF 30A |
